LOMEHO 4 Channel Mixing Console 16 Effect Bluetooth Sound Audio Mixer with 2 Adjustable Frequency Wireless Microphone AM-AKS2

LOMEHO AM-AKS2
4 Channel Mixing Console 16 DSP Effect Bluetooth USB Playback Recording Professional Sound Audio Mixer with 2 Adjustable Frequency Wireless Microphone for Karaoke.
Selling Point：
1. Power supply: DC 5V 2A
2. +48V phantom power (Only for 1/2 channel)
3. Bluetooth function
4. Support u-disk playback & recording
5. Support PC playback & recording
6. 16 DSP effects
7. With 2 UHF adjustable frequency wireless microphone
Microphone A: 646.0-685.2 MHz
Microphone B: 646.3-685.5 MHz
Power Supply
Working Power: DC 5V 2A

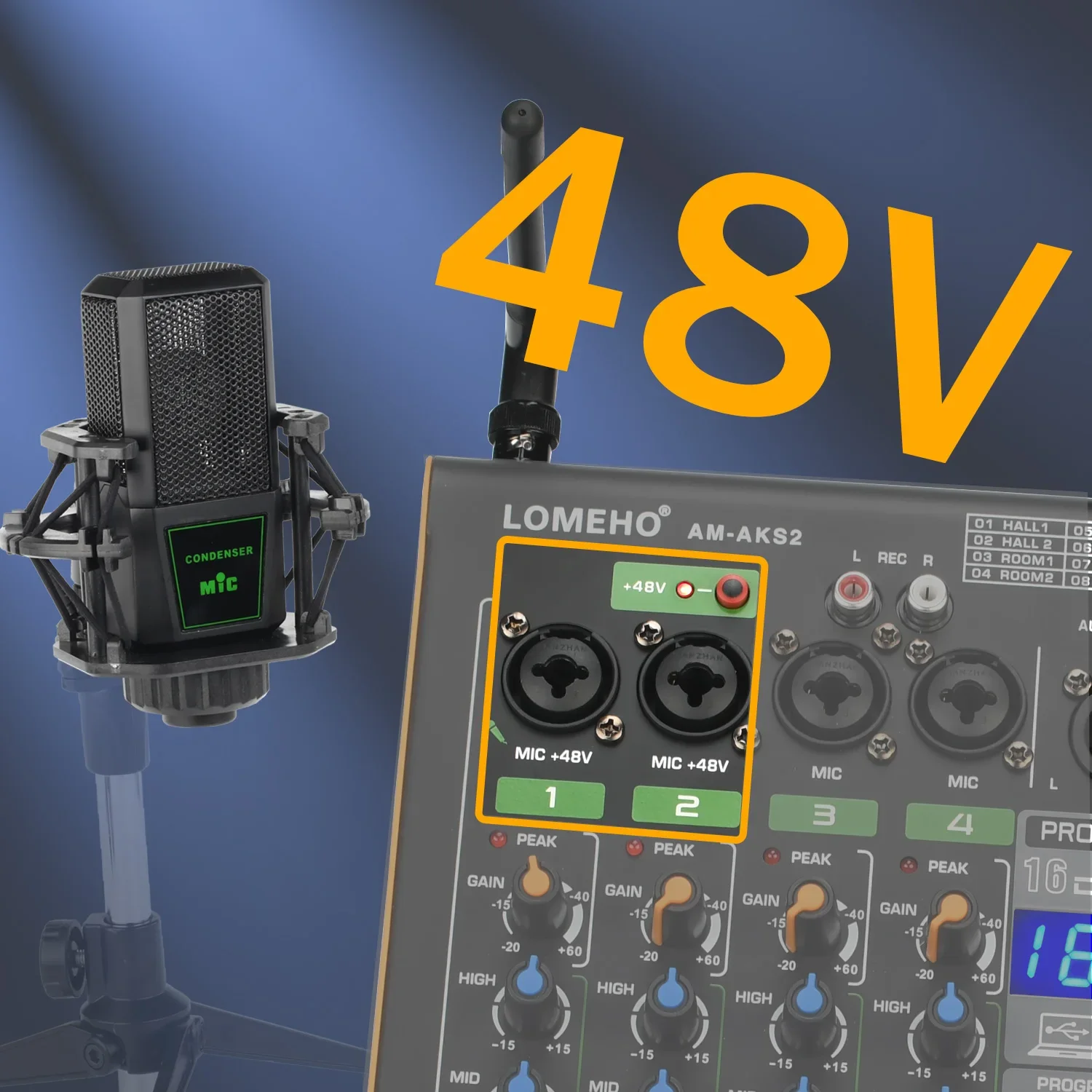

+48V Phantom Power
(1) Press down “+48V” button, LED light is on, +48V phantom power works
(2) +48V phantom power only for 1/2 channels
(3) +48V phantom power is only for XLR socket, not for 1/4″ socket
Dynamic Microphone
1. When using dynamic mic, please turn off 48V power, otherwise the dynamic mic will be burned out.
2. We recommend use XLR plug to input, because the sound will be smaller when use 1/4″ plug to input.
Condenser Microphone
If your microphone is +48V condenser microphone, please connect it to mixer via XLR cable, and power on +48V phantom power
Please note:
For this model, it dose not support non-48V condenser microphone. (such as 3.5mm plug condenser computer microphone)

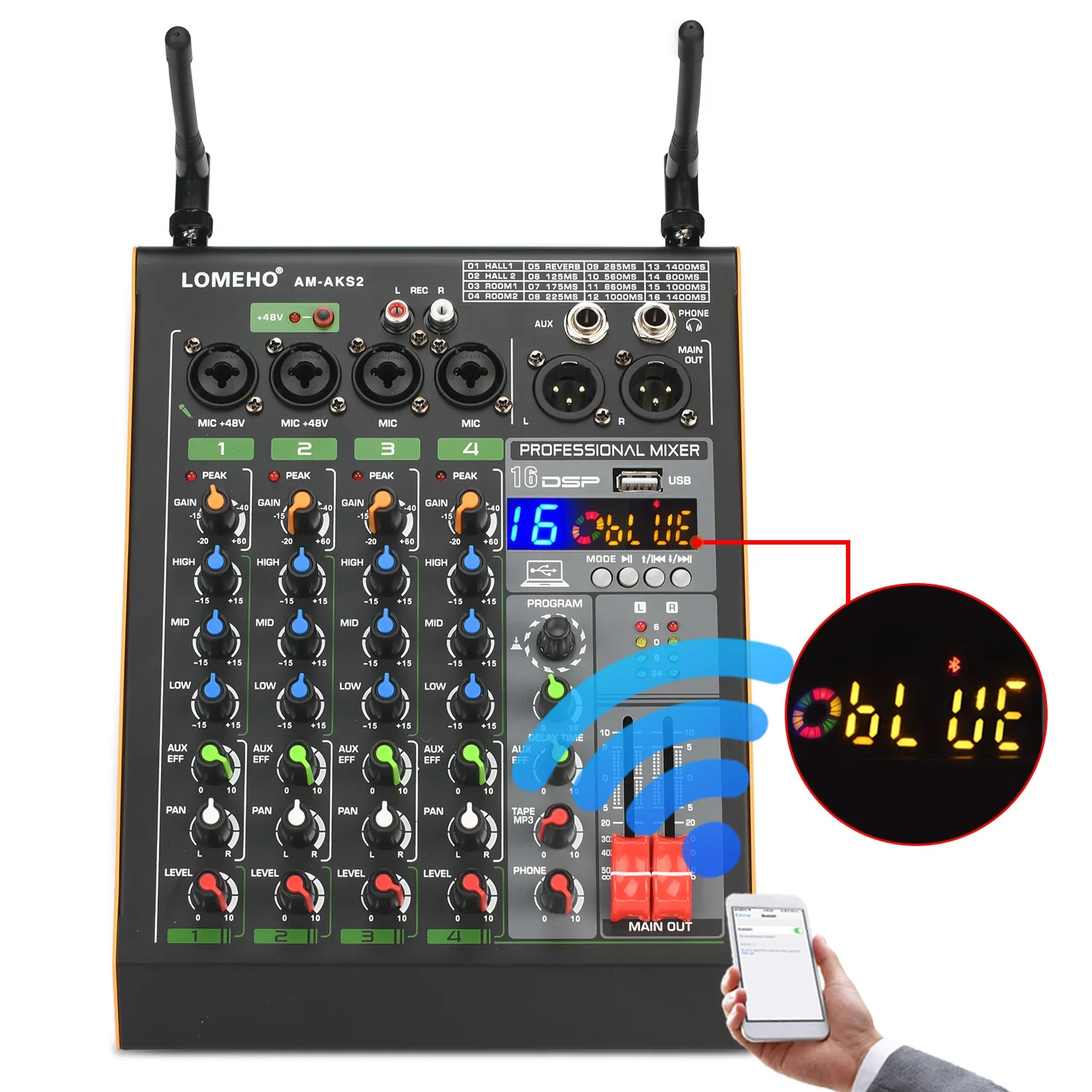

Bluetooth Function
Volume adjusts
1) Rotate TAPE/MP3 knob, adjust the channel volume to main out
2) Adjust main out output
USB Function
(1) Protective film on the display:
There is a protective film on the display to prevent the display from being scratched. If the protective film is not clear, you can tear off the protective film
(2) USB port is not for USB microphone, you can’t connect USB microphone to audio mixer
(3) USB format:FAT32
A) USB port can’t recognize NTFS U-Disk
B) There is at least one song in the Fat32 U-Disk
(4) USB play:

A) Play format: MP3, FLAC, WAV, WMA
B) Insert U-Disk into USB port, U-Disk will play automatically
C) Volume adjusts （same as Bluetooth volume control）

(5) USB record:

A) Insert a FAT32 U-Disk, and there is at least one song in the U-Disk
B) Record format: MP3
C) Record operation:
(a) Short press MODE to switch to REC
(b) Short press the play & pause button to start recording (REC flashes during recording)
(c) Short press MODE to exit the recording and start playing the latest recording file
D) Record volume adjust: Same as Bluetooth volume control
16 DSP Effects
(1) Choose effects
A) Rotate “PROGRAM” knob to the number of the effect you want, then the number is flashing
B) Press “PROGRAM” knob to confirm your selection, then the number stops flashing
C) In the process of the flash of the number, if you do not press “ROGRAM” knob over 12 seconds, the number will come back to Pre-effect-number
PC Record and Play
PAN Knob
Gain Knob

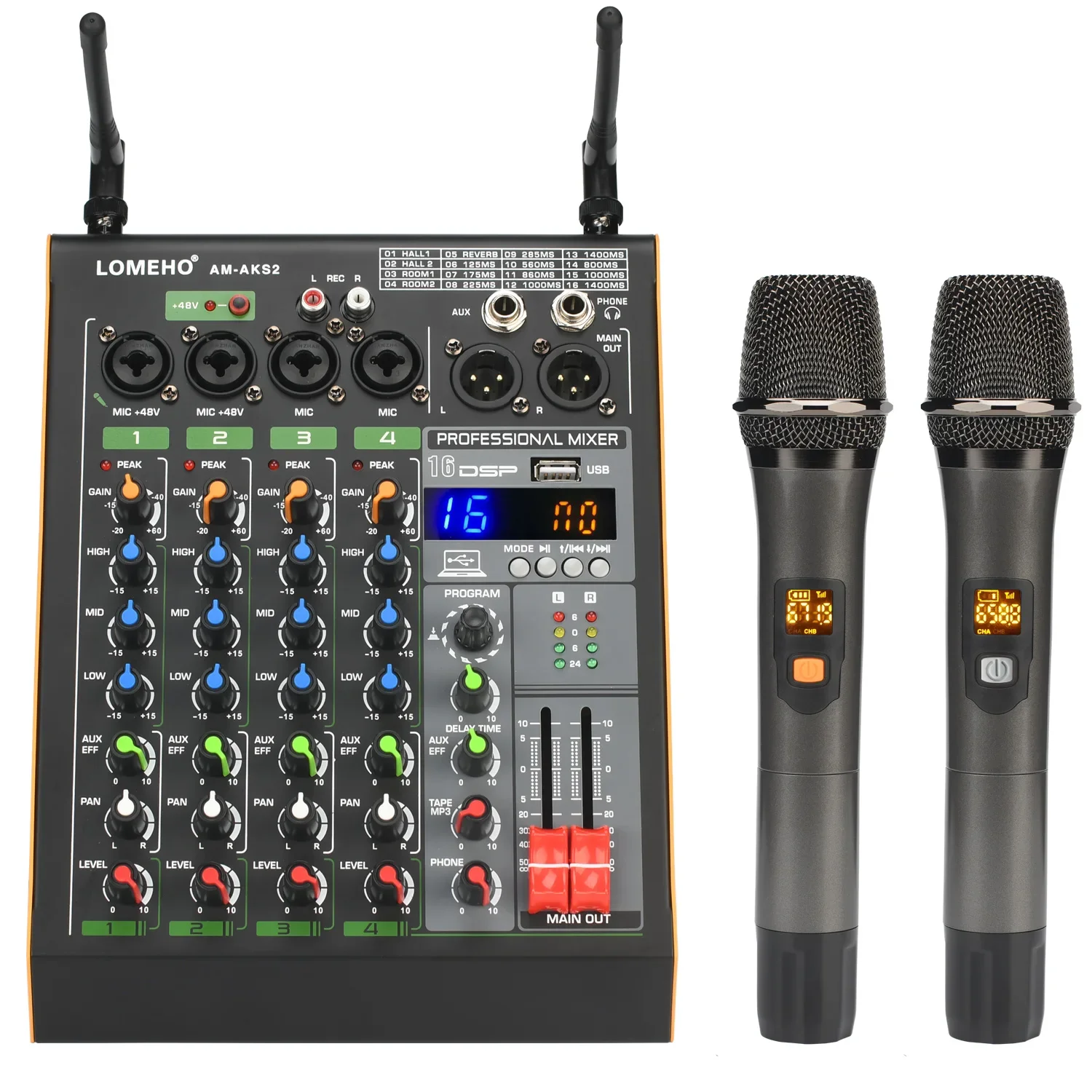

2*50 UHF adjustable frequency wireless microphone
(1) Battery: 2*1.5V AA (Not included in the package)
(2) Working distance:
Packing List:

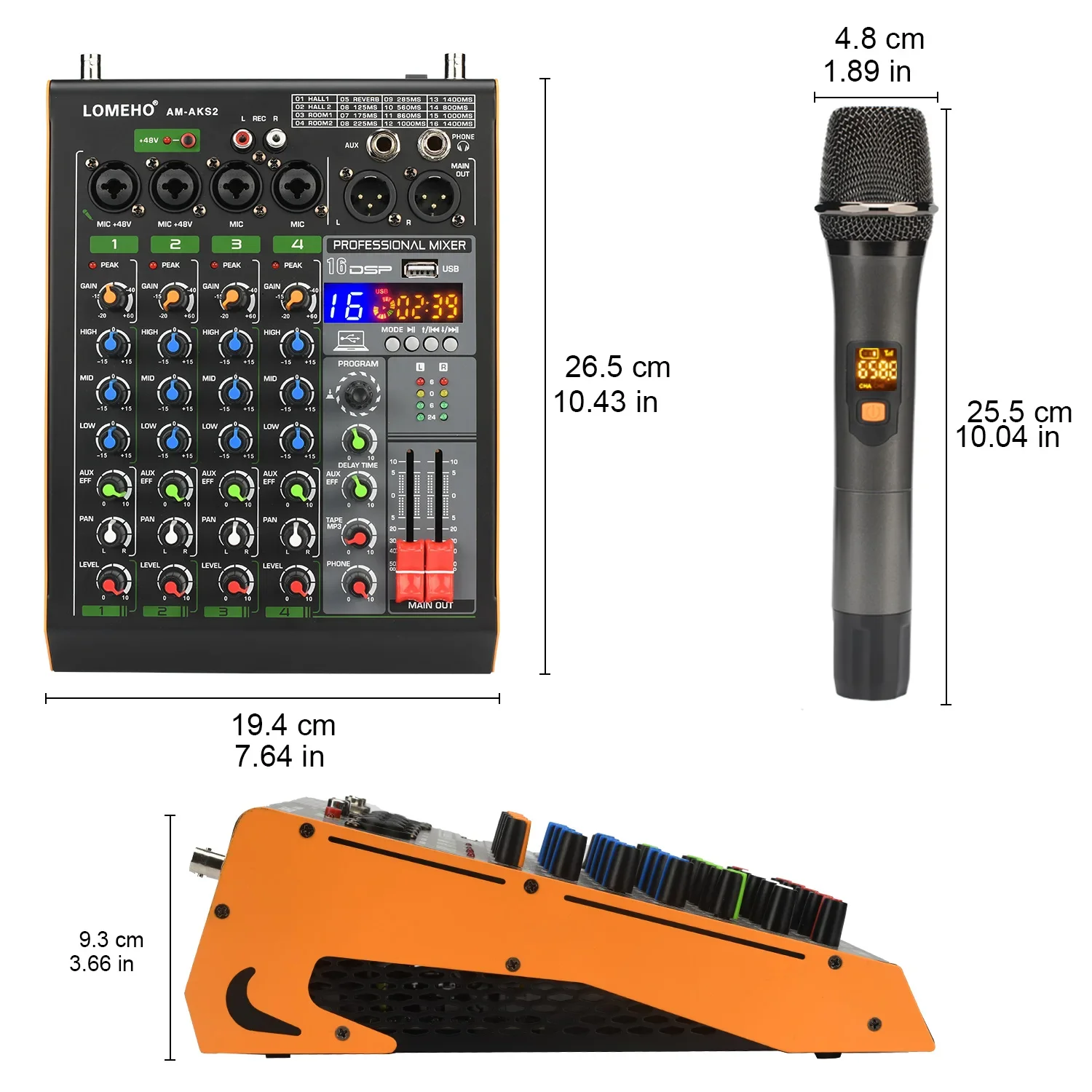

Product Size:
Product Details:
