CWWK Mini PC N355 Firewall Appliance, Fanless Mini Computer with 6 Port 2.5GbE i226-V LAN, F5 OPNsense Micro PC DDR5 NO RAM/SSD

About this item
2025 New Gen. N355 Processer: The CWWK F5 Mini PC features the new model Twin Lake Core 3 N355 CPU (upgrade of the Core i3 N305), 8 cores 8 threads, up to 3.9GHz, 6MB cache, TDP15W. The multi-core architecture and high performance of the N355 excels in handling complex, demanding tasks. Supports Auto Power-on, Wake-on-LAN, PXE boot, AES-NI. UEFI only supported
DDR5 and Dual NVMe Slot: 1 x DDR5 SO-DIMM 4800MHz RAM slot, up to 32GB. With 2 x M.2 slots (PCIe3.0 x1) for 2280-sized NVMe SSDs, it also offers 1 x SATA3.0 ports for SATA SSD/HDD installation, which can be connected externally via cable. When Wi-Fi/BT wireless card module is needed, the NVME2 slot can be converted M.2 Wi-Fi slot via M.2 M-Key to M.2 E-Key adapter

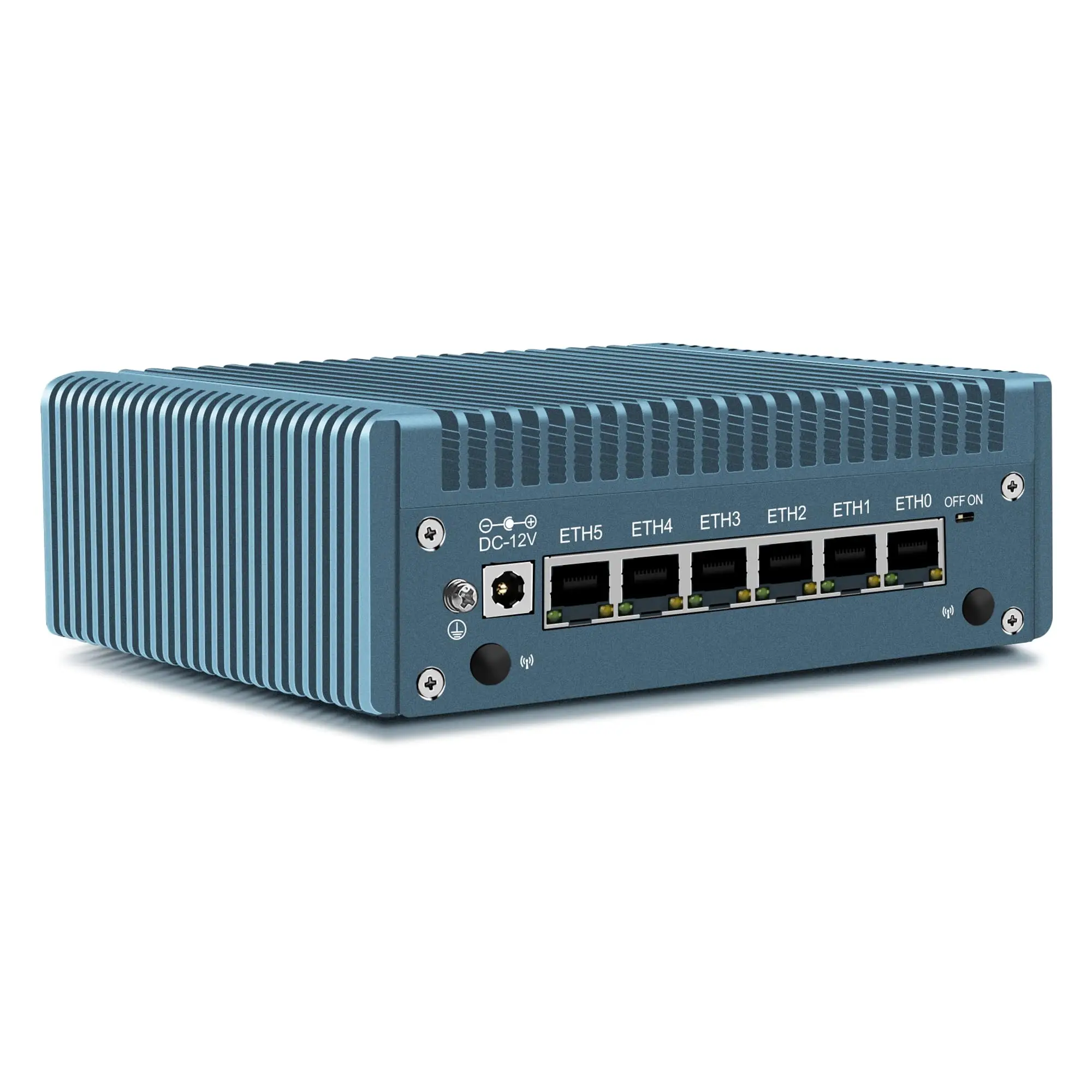

6 x 2.5Gb High-speed LAN: Equipped with 6 x i226-V 2.5Gigabit Ethernet controllers, it can adapt to 100M/1000M/2.5G LAN. It is compatible with various common open-source soft router or virtual machine systems, like OPNsense or PVE, ideal for building network security firewalls or virtualization All-In-One

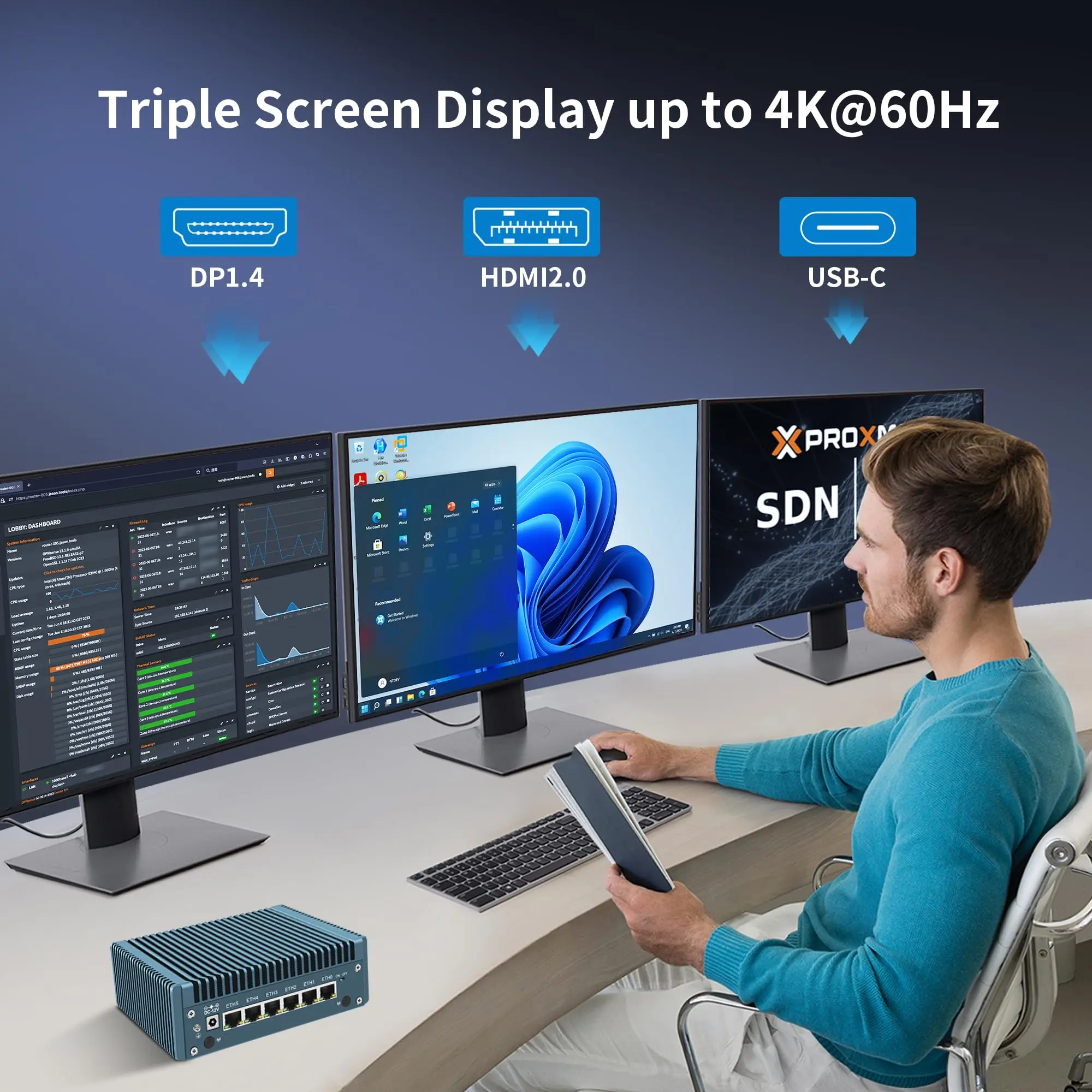

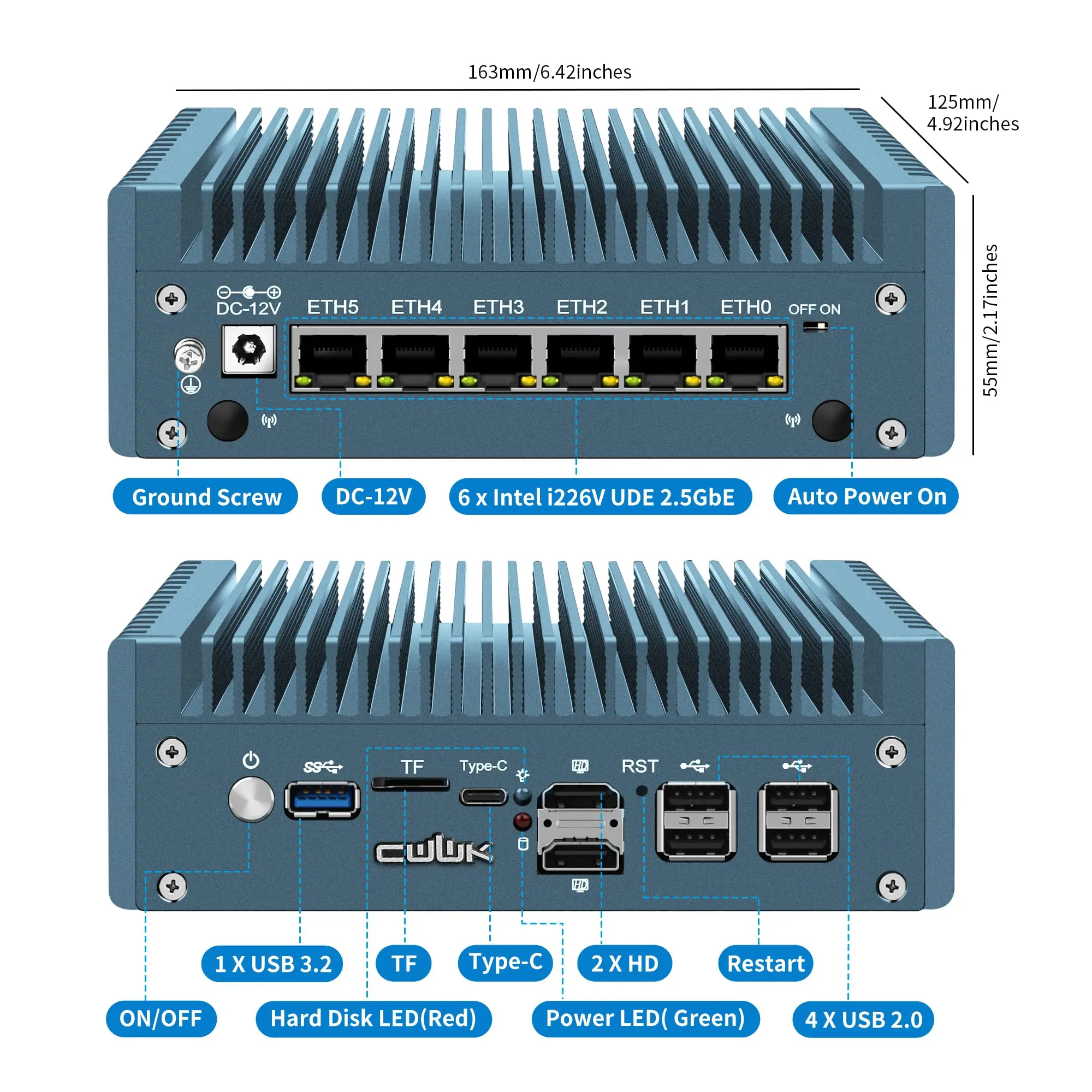

Various External I/O Interfaces: The UHD Graphics supports hardware-accelerated 4K video output. Equipped with HD + DP + USB Type-C, supporting triple screen display, up to 4K@60Hz. 1 x USB3.0, 4 x USB2.0, 1 x MicroSD slot for data storage or system boot, support switching Auto-Power-On ON/OFF through a toggle switch

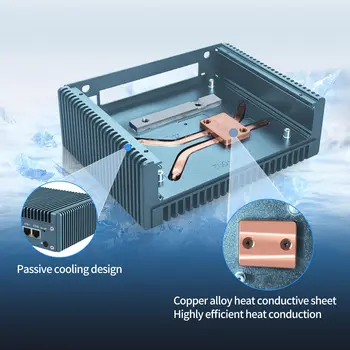

Fanless Passive Cooling Design: To ensure efficient heat dissipation, the entire casing is made of aluminum alloy, with the top and sides featuring a scientifically designed cooling structure. It is specifically built for 24/7 continuous and energy-efficient operation. Please note, The product manual and FAQ guide will be provided before shipping
Product information

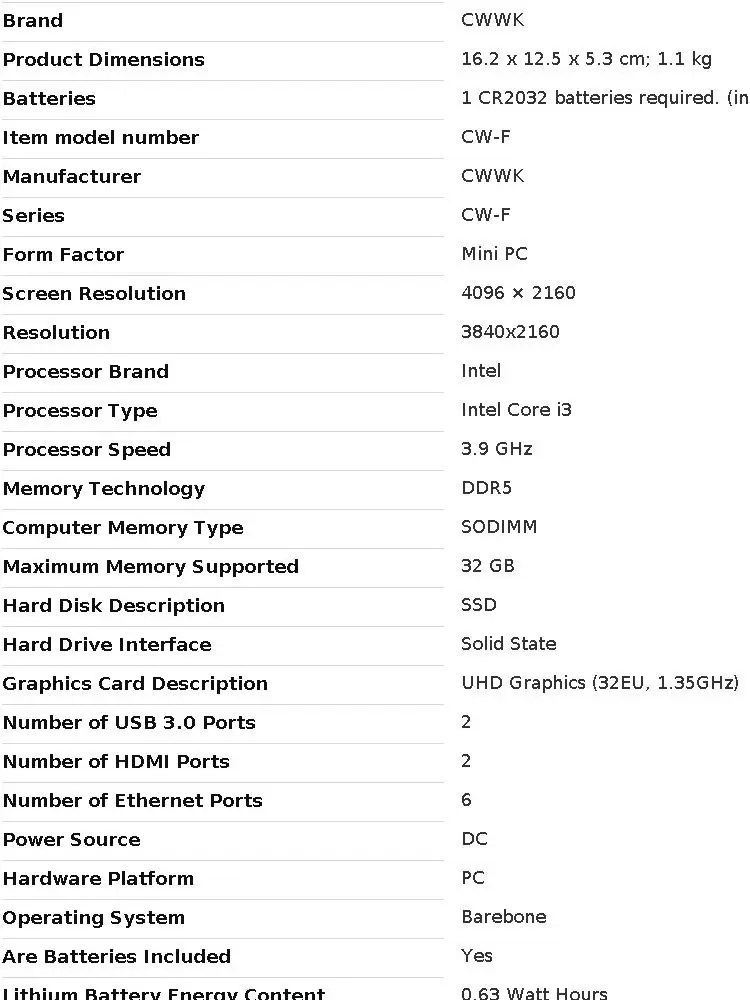

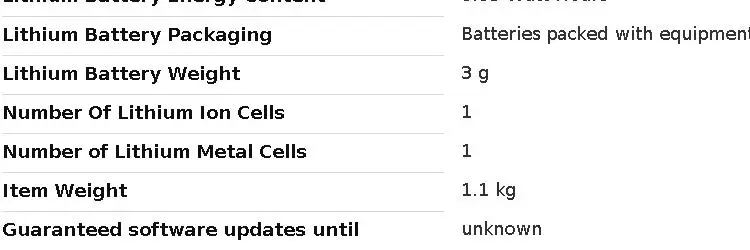

Technical Details
